Genmega Onyx W. ATM

The G2500 comes standard with an 8″ high-resolution wide-screen LCD, which can be upgraded to a 10.2″ touch screen. The receipt printer can also be upgraded to a 3″ graphics-capable for custom branding or coupons. The integrated topper can also be paired with a selection of energy-efficient LED toppers to add visual impact ad attract customers. In addition to the fixed, removable and multi cash cassette dispenser options offered by Genmega, the G2500 can also support cash dispensers from other equipment suppliers, providing more flexibility and upgrade options for existing deployments.

Integrated Illuminated Sign

High Visiblility LED Sign
Attract Customers

LCD Screen

10.1 inch wide TFT LCD Panel
1280x800 Resolution
Customizable Ad Screens
8 Lighted-Touch function keys

Printer

56mm (2" standard)

PIN Entry Device

16-key alphanumeric keypad
PCI 3.0 Certified EPP (Encrypting Pin Pad)
LED Illumination

Communication

56Kbps dial-up modem
TCP/IP Ethernet connection - Onboard SSL

CPU

Cortex-A8 CPU (800MHz)
DDR2 256MB SRAM memory
512MB Flash Memory
Windows CE 6.0

Card Reader

EMV (DIP Type)

Cash Dispenser

2,000 Note Removable Cassette (WCDU 2K)

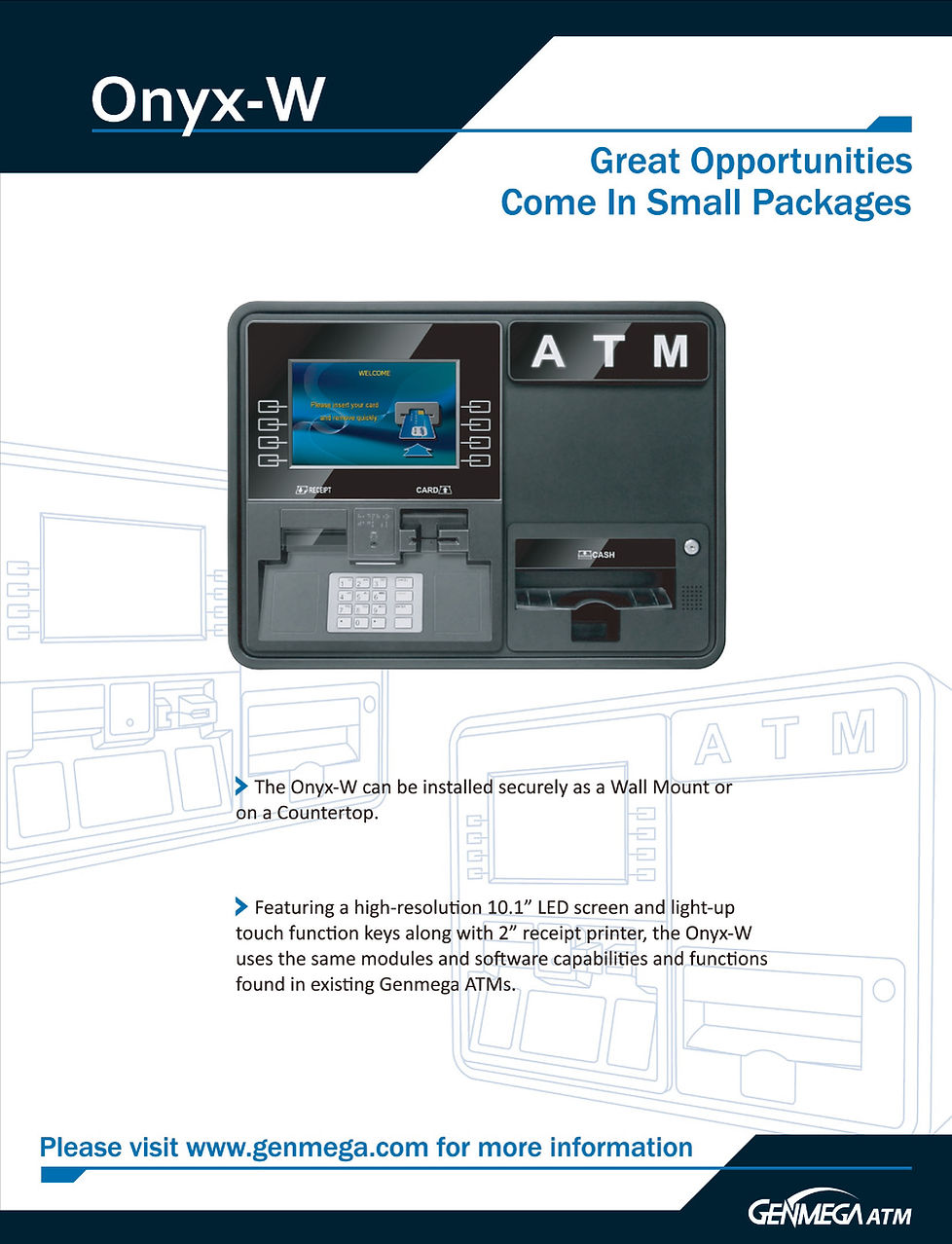

Introducing the most popular small ATM. This ATM can be installed securely as a Wall Mount, in the wall, or on a Counter Top. You're installation options are only limited by your imagination.

Featuring a high-resolution 10.1" LCD screen and light-up touch function keys along with 2" receipt printer, it uses the same modules and software capabilities and functions found in existing quality full-size ATMs.

Dispensing is handled via a 2,000-note removable cassette which is secured inside it's own internal vault system which is available with electronic locks.

Dimensions
